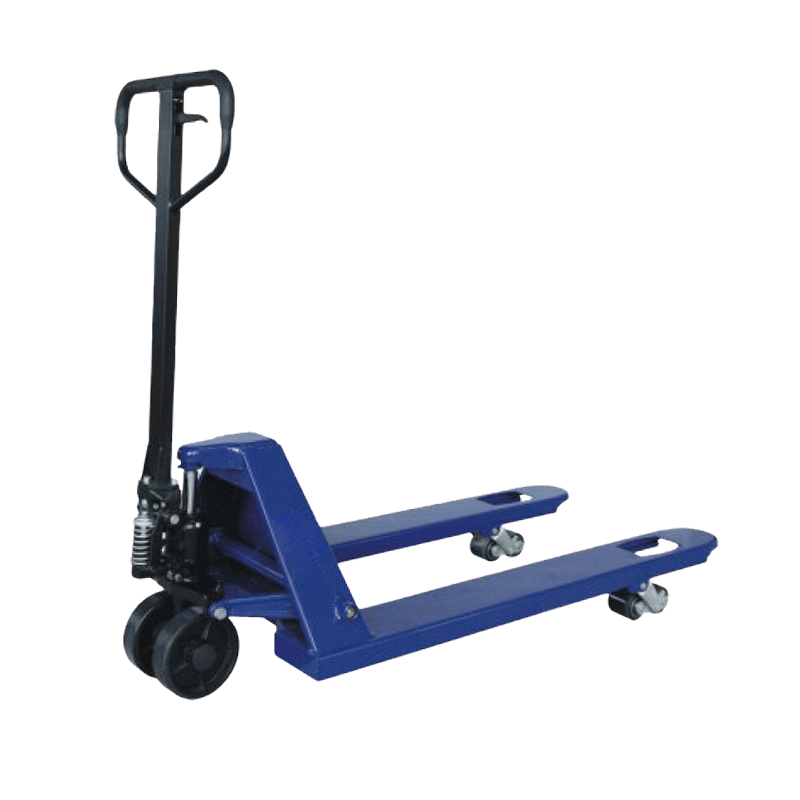

Hydraulic Manual Pallet Jack Truck- Model DF Series

Hand-Hydraulic Pallet Truck

2000/2500/3000kg

LOAD CAPACITY

550/685mm

Outside Fork Spread

800/900mm

Length of the Fork

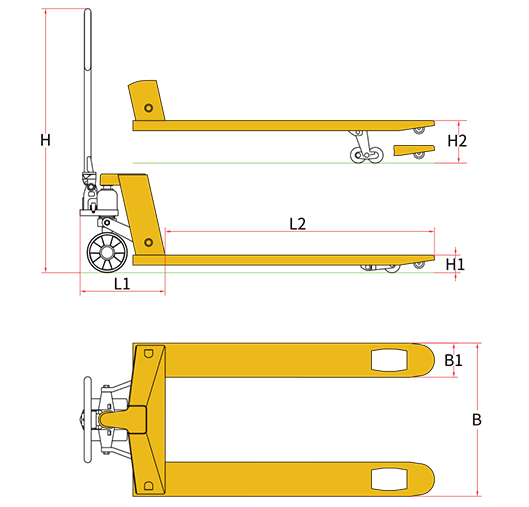

Specifications
Model		DF20		DF25		DF30
Load Capacity	kg	2000		2500		3000
Lowest Fork Height	mm	85	75	85	75	85	75
Maximum Fork Height (H2)	mm	200	190	200	190	200	190
(Outside Fork Spread(B)	mm	550/685
Length of the Fork(L2)	mm	800/900/1000/1067/1100/1150/1220
Width of the Fork(B1)	mm	160x50
Head Length(L1)	mm	370
Dia.Of the Front Wheel	mm	Φ80x93 Φ80x70	Φ74x93 Φ74x70	Φ80x93 Φ80x70	Φ74x93 Φ74x70	Φ80x93 Φ80x70	Φ74x93 Φ74x70
Dia.Of the Steering Wheel	mm	Φ200x50	Φ180x50	Φ200x50	Φ180x50	Φ200x50	Φ180x50
Material Of the Wheel		Nylon/Polyurethane/Rubber
Height of handle from the ground(H)	mm	1230
Net Weight	kg	550 Single Nylon-66kg / double Nylon-67kg / 550 Single Pu-70kg / double PU-73kg /685Single Nylon-71kg /double Nylon-72kg /685 Single PU-75kg /double PU-78kg
Q'ty in one 20'Container		550 180 pcs /685 144 pcs

Ningbo Yinzhou Walsun Machinery Factory, as famous China Hydraulic Manual Pallet Jack Truck- Model DF Series Suppliers and China OEM Hydraulic Manual Pallet Jack Truck- Model DF Series factory, has sufficient production capacity and high control over raw material prices, quality and stable supply, laying the foundation for continuous production; the company has a reasonable sales and warehousing network and efficient operation mechanism to ensure domestic shipments within one week, and foreign trade orders are based on customer needs can be shipped on time.

The company strictly implements the procedures of screening and reviewing raw material suppliers, incoming material testing, and incoming material comparison; excellent production process design and program control make each batch of Hydraulic Manual Pallet Jack Truck- Model DF Series more stable and traceable, and obtain high-efficiency production control; strict In accordance with the supplier's indicators, each batch of Hydraulic Manual Pallet Jack Truck- Model DF Series is inspected and monitored for quality.

Our Hydraulic Manual Pallet Jack Truck- Model DF Series are widely used in various production companies such as hardware machinery, textiles, food, medicine, logistics, and supermarkets, homes, and shopping malls.
